ECM Mechanika VI Slim (online Only)



The ECM Mechanika VI Slim combines prosumer excellence with efficiency in design giving you cafe-quality espresso and milk beverages without the monopoly on counter space. The high-quality stainless steel boiler has an increased capacity of 2.2 L and has been vertically oriented to create a smaller footprint without any decrease in performance. The Mechanika VI Slim has a removable cup tray allowing easy access to the easy-to-adjust expansion valve. This valve allows you to dial in the perfect pressure to extract the most out of your favorite roasts. The classic mirror-finish stainless steel body design of the Mechanica VI Slim exudes the high-end appeal you have come to expect from ECM machines.

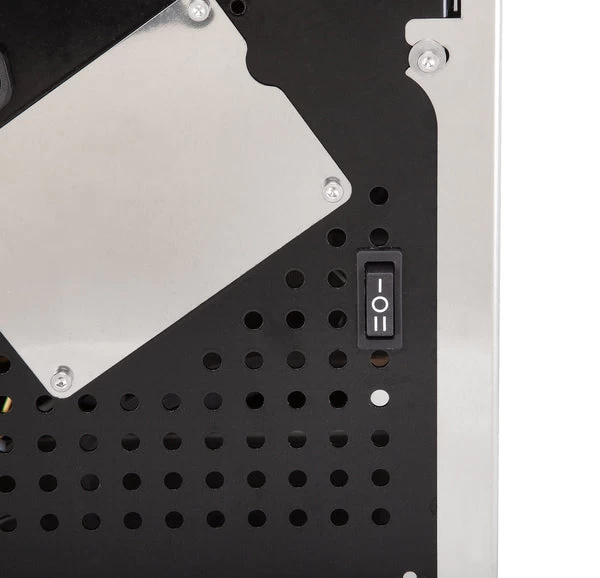

Pre-Set Temperature Switch

User Manual

Features:

• ECM patented E61 Group Head: The E61 brew head design has been around for over 50 years, but ECM significantly improved it in technology and design with their stainless steel mushroom.  The E61 group is known for its reliability and temperature stability due to heavy brass head combined with a thermosyphon system keeping the group head hot.

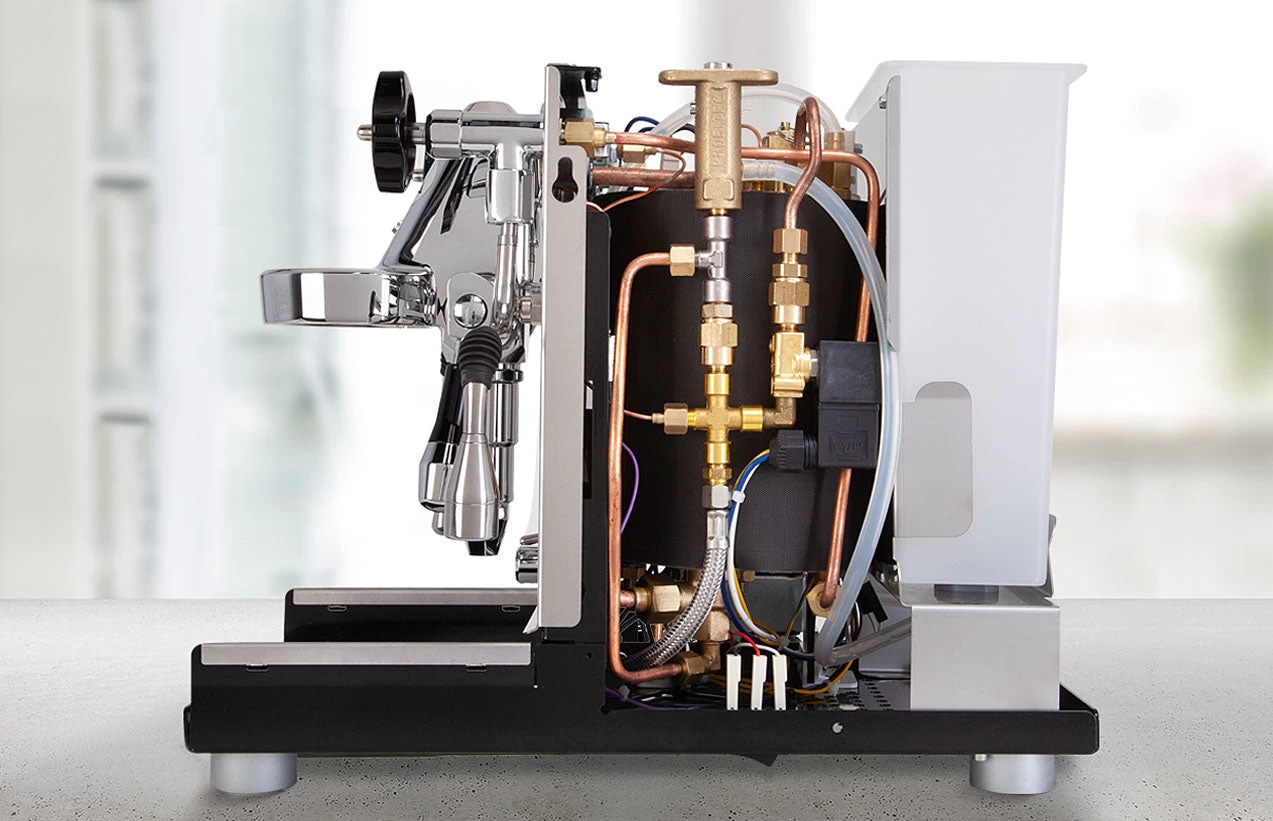

• 2.2L Stainless Steel Boiler: The Mechanika VI Slim features a large insulated stainless steel boiler with a heat exchanger (HX) allowing for espresso and milk steaming simultaneously.
• PID Temperature Control:  The PID (Proportional Integral Derivative) controller allows the user to precisely adjust the steam boiler temperature and improves temperature stability.  The Mechanika VI Slim features a simplified PID that allows the user to choose between three temperature settings.

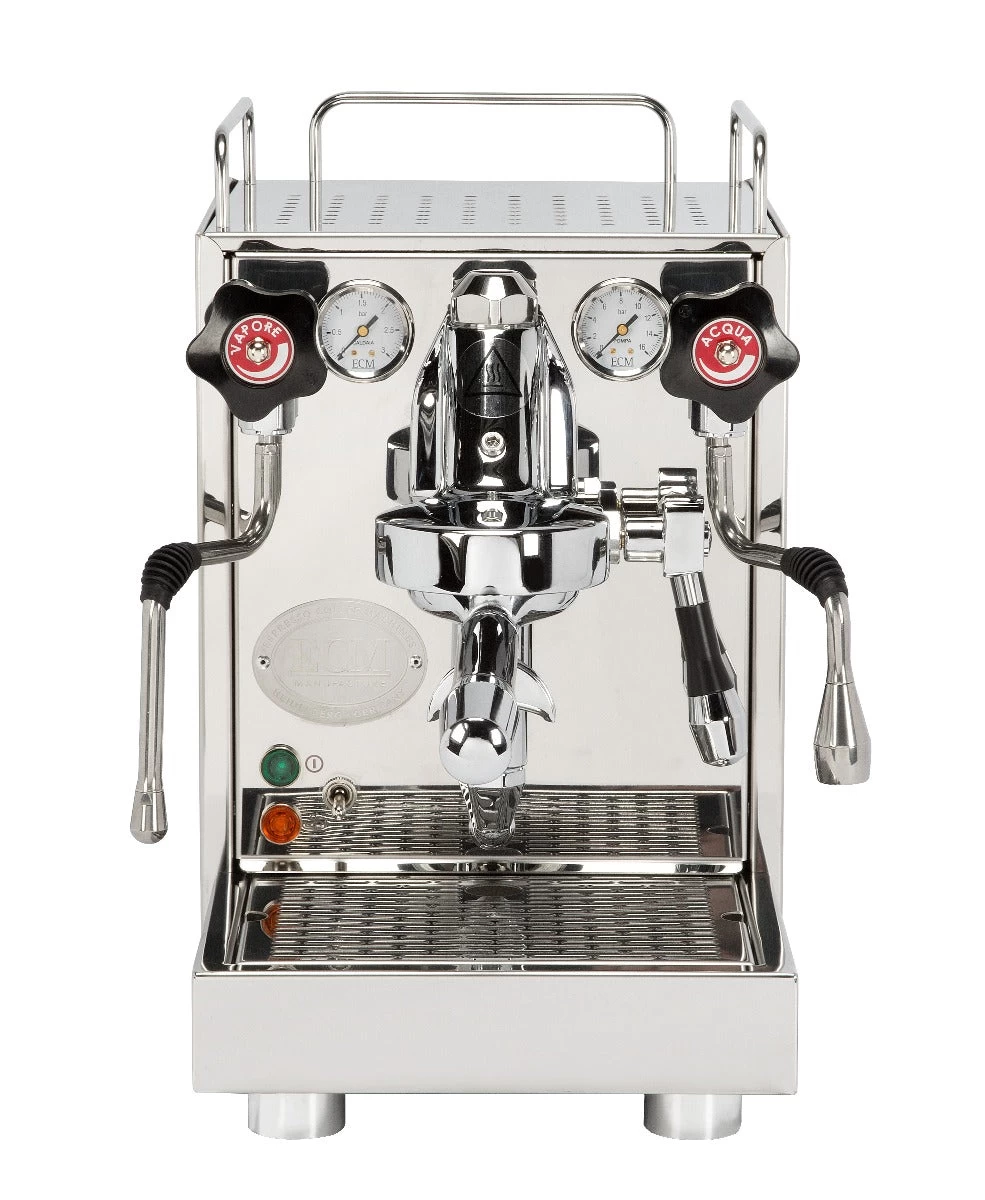

• Pressure Gauges: The two pressure gauges allow you to control both the pressure of the steam boiler and the pressure during coffee extraction. They are a great feedback tool which let you better understand your machine and improve your espresso making skills.

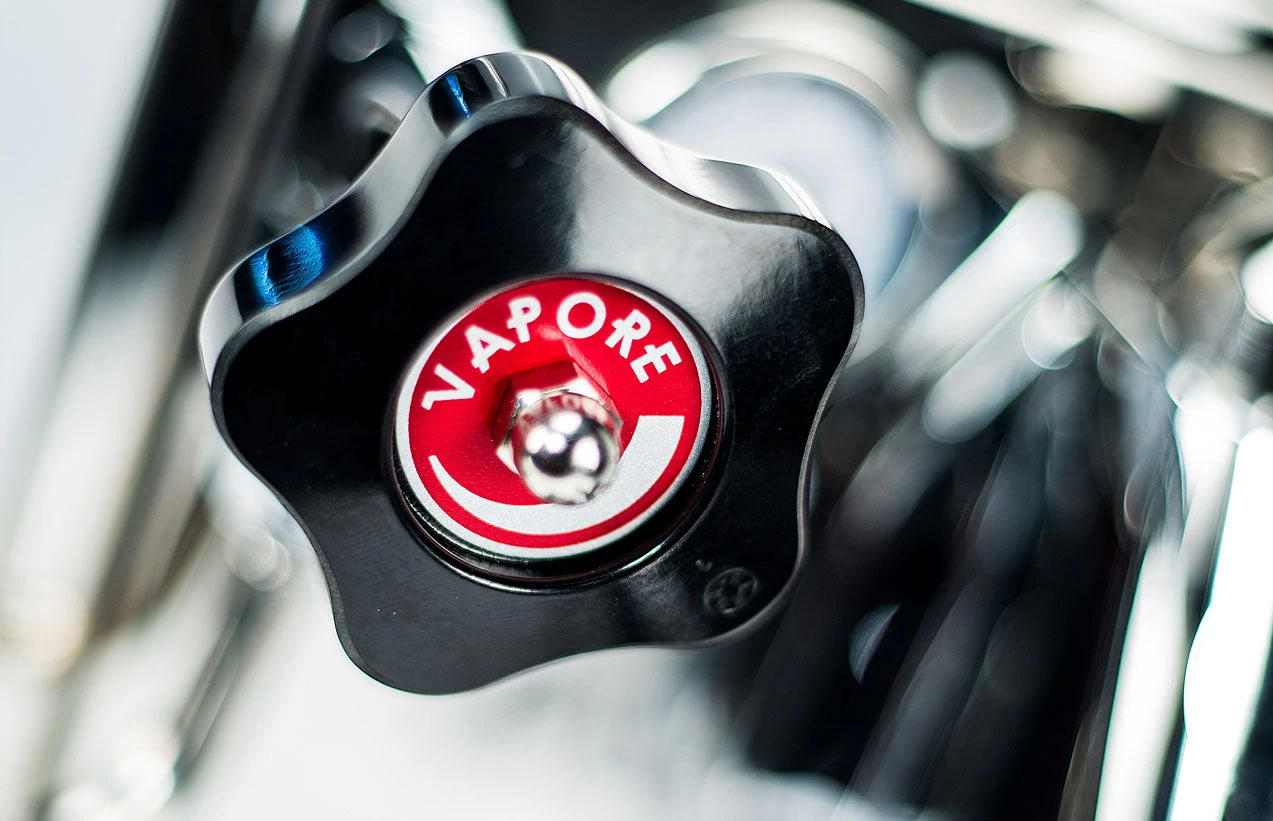

• Rotary Valves:  These are low-wear and easy to handle, thanks to spring-loaded technology.
• Water Sensor:  Level control cuts the power circuit if water is low, with a microprocessor that automatically controls the level of the water tank and boiler. A low water level warning will tell you when you need to refill.
• Externally adjustable OPV: Brew at the pressure you want thanks to an externally adjustable over pressure valve (OPV).

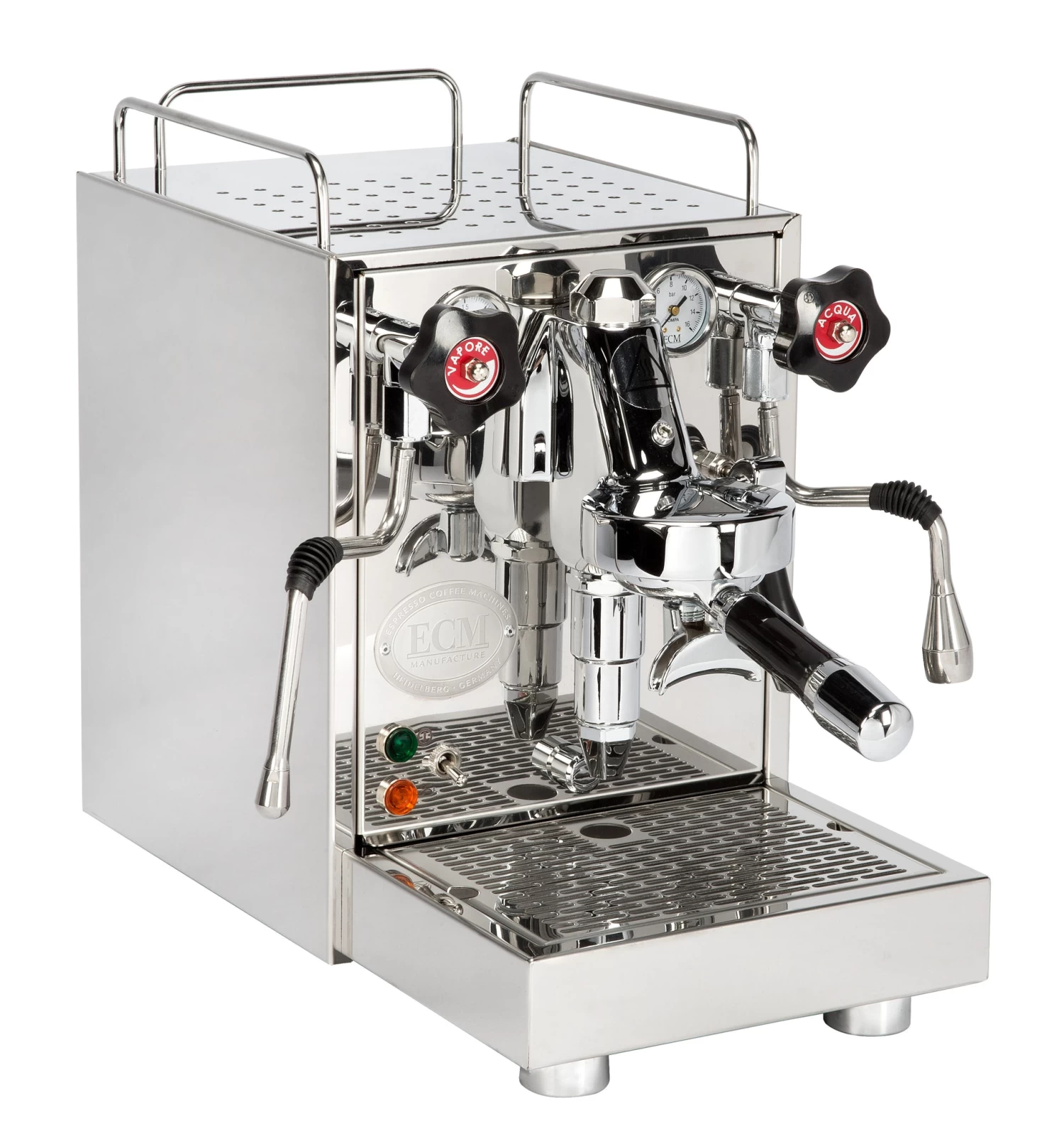

• Beautiful Finish:  The body, water tray and feet are made of stainless steel with no sharp edges and built for a long lasting and easy to clean finish.
• Professional tamper:   Comes standard with a stainless steel tamper instead of the cheap and flimsy plastic tamper typically included with espresso machines,



Specifications:

Boiler Type	Heat exchanger
Boiler Wattage	1400W
Boiler Material	Stainless Steel
Boiler Size	2.2L
Group Size	58mm
Programmable	No
PID	Yes
Pre-Infusion	Yes
3 Way Solenoid	Yes
Pump Type	Vibratory
Water Supply	2.8L water tank
Cup Warmer	Pass through
Included baskets	Single, double, blind
Included accessories	Professional tamper, single and double portafilter, cleaning brush
Depth	44.4cm (17.5″)
Height	39.5cm (15.6″)
Width	25.0cm (9.8″)
Weight	20.2kg (44.5lbs)
Power	110/120V, 1400W
Made in	Germany
Manufacturer Warranty	1 year parts and labor
